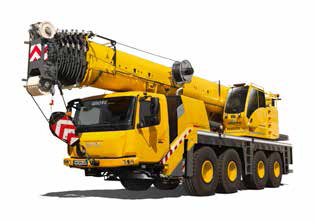

100 Tonne Grove GMK4100L-1 All Terrain Crane
Main Boom 11.3m – 60m, wrap around fixed fly jib 11.1m – 25.8m, with hydraulically adjustable 0 – 45 degrees offset. 4 axle crab steer all terrain mobile crane with 0.8 tonne capacity 54m radius. Maximum lift of 100 tonne @ 3m radius, with variable outrigger settings of 2.34m – 7.2m.
To Hire This Crane
Call us on 02 9624 1944
|Main boom (with fly)||85.6|
|Fly||11.m - 25.6m|
|Outrigger||2.34 retracted - 3.83m / 5.31m / 6.25m intermediate - 7.2m fully extended|
This chart has general information and does not include all configurations. Our advice is free so contact us to discuss your options.
